VX-100

Bright
multi-touch screen

Screen size 10,1”, Aspect ratio 16:10, Resolution 1920x1200, Contrast ratio 800:1, White luminance 1000cd/m2, Viewing angle 160 degrees, 1mm chemically strengthened front glass, Daylight Viewable, PCAP multi-touch, Usable with thin gloves

Easily customizable
I/O and software

Create your own apps or use our standard apps. Configure physical buttons, switches, joysticks to suit your needs.

Integrated camera
and sensors

Docking station with charging (Safe Zone) or without charging (Zone 1), Carrying harness, Table charger for safe zone, Visionlink cable.

Accelerometers and gyroscope to detect tilting, free fall and shock. Ambient light sensor.


Long battery life

Lithium Ceramic technology, Nominal voltage 7.6V, Up to 6 hours battery life, Changeable in Zone 1, Charging in Zone 1 using cable (EXi), Charging in safe Zone using table charger

Redundant wireless
communication

Visionlink – Proprietary redundant radio link consisting of: Highly reliable UHF 869MHz and WiFi supporting 802.11a/b/g/n (2.4GHz/5.8GHz)

Designed for high
relability and safety

Rugged design.  IP66 rated*. Stop function  according to  IEC 62745 GSS/ATS and EN ISO 13849 PLd cat.3

*Depending on configuration

Technical Specifications

  • Operating Temperature:

    -25 - +55 °C

  • Storage Temperature::

    -30 - +70 °C

  • EX rating:

    IECEx - Ex ib IIC T4 Gb - Certificate: IECEx_BKI_20.0004

    ATEX - II 2G Ex ib IIC T4 Gb - Certificate: BKI20ATEX0015

  • Safety level stop function:

    IEC 62745 GSS/ATS and EN ISO 13849 CAT. 3 PLd when remote armed

  • Ingress Protection (IP):

    IP66*

    *Depending on configuration

  • Dimensions:

    415x226x97,5mm (16,34x10,08x3,84 inch)

  • Weight:

    Approx. 4,7 kg.  Depending on configuration

  • Display:

    Screen size 10,1”

    Aspect ratio 16:10

    Resolution 1920x1200

    Contrast ratio 800:1

    White luminance 1000cd/m2

    Viewing angle 160 degrees

    1mm chemically strengthened front glass

    Daylight Viewable

    PCAP multi-touch

    Usable with thin gloves

  • Operator Feedback:

    Vibration and audio

  • Sensors:

    Accelerometers and gyroscope to detect tilting, free fall and shock. Ambient light sensor.

  • Operating system:

    Windows 10

  • GUI Software platform:

    Qt - A standard API available for easy development of user apps.

  • Radio Link:

    Vision Link – Proprietary redundant radio link consisting of:

    Highly reliable 869MHz and WiFi supporting 802.11n (2.4GHz/5.8GHz)

  • Radio operating range:

    UHF typically 200m

    WiFi typically 50m

  • Battery:

    Lithium Ceramic Battery

    Over 6 hours battery life (50% backlight/50% CPU load)

    Easily swappable

    Charged in docking station, via cable or using table charger

  • Configuration options:

    Choose from several types of joysticks and switches.

  • Camera::

    Forward facing camera

    8MP

    Max Resolution 3264(H)x2448(V)@15FPS

  • Accesories:

    Docking station with charging (Safe Zone) or without charging (Zone 1)

    Carrying harness

    Table charger for safe zone (Dual battery charger)

    Visionlink cable

Accessories

Docking

Docking interface for VX-100 RU.
Options:With or without charging

Junction box

Junction box for extending VisionLink cable into hazardous area

Zone 2 classified

Carrying Harness

Shoulder harness with tilt functionality

Visionlink cable

Visionlink communication cable act as and communication back up, and also charge the battery of VX-100 RU in Zone 1 while remote is turned off.

Usage

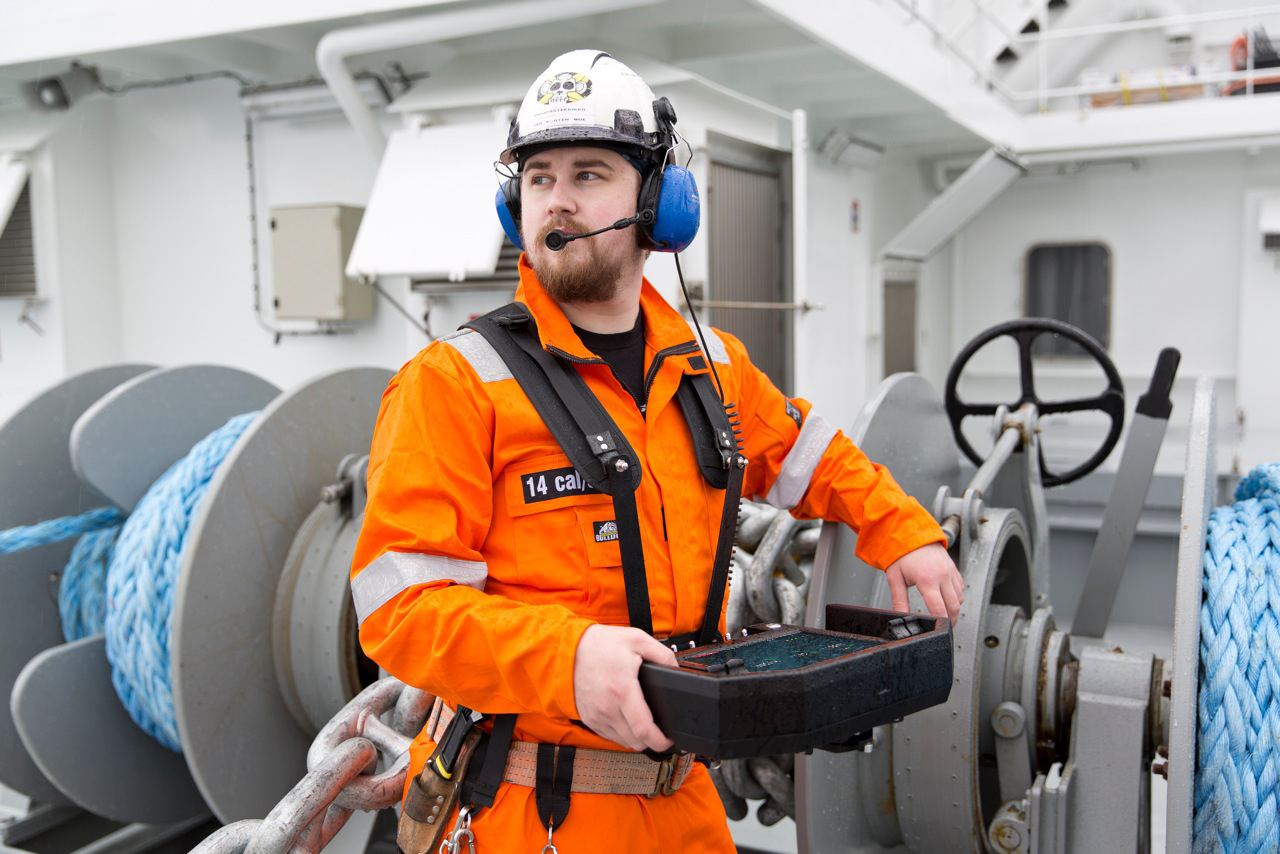

Operating LARS system using Vision Remote

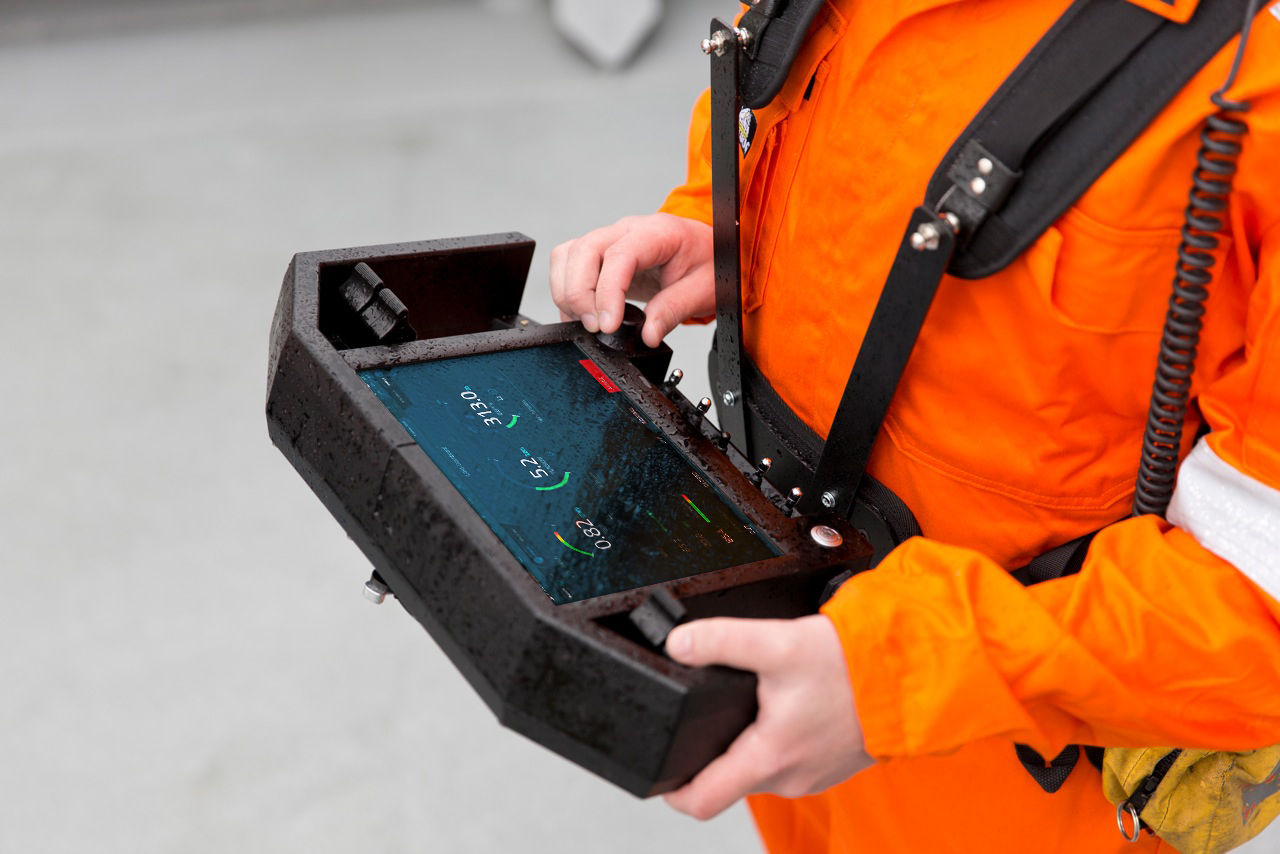

Closeup of Vision Remote in use

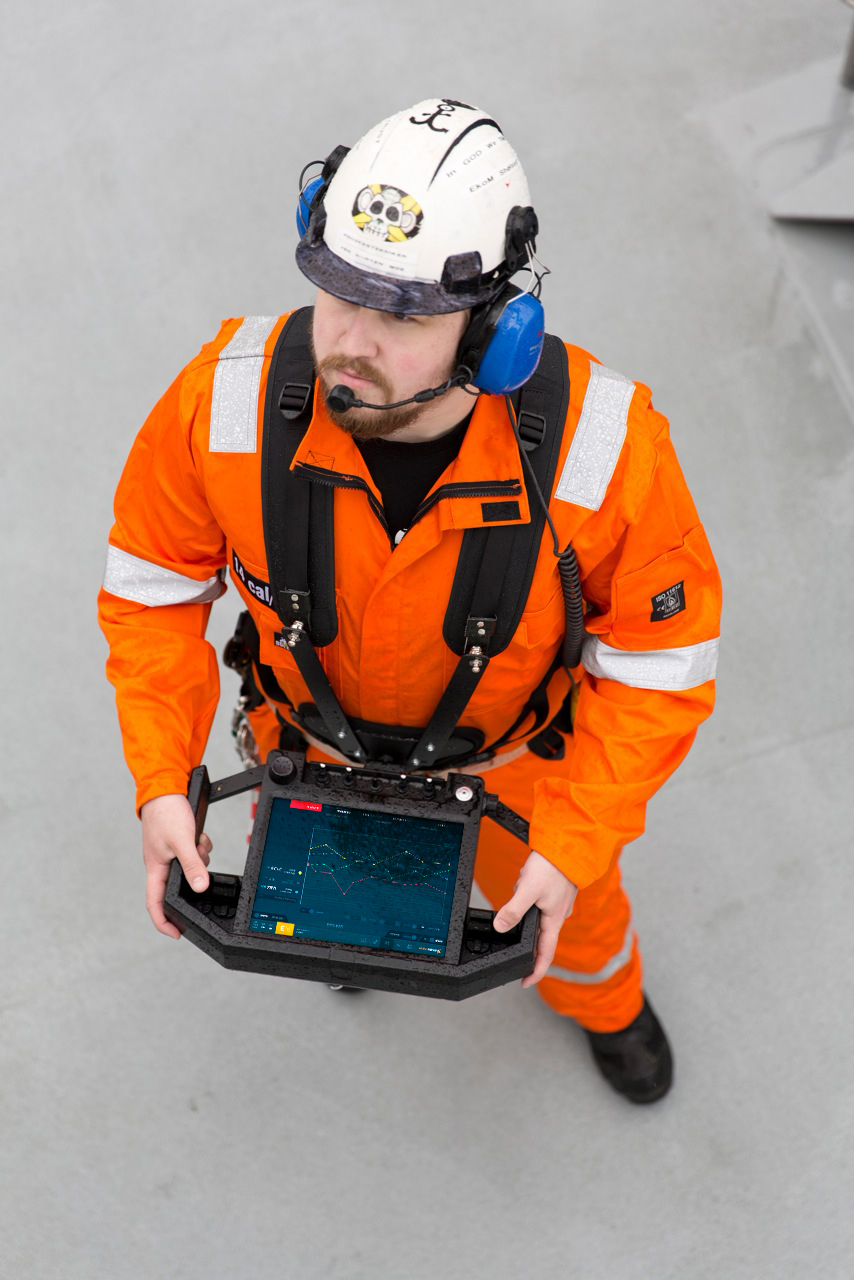

Operating LARS system using Vision Remote
Closeup of Vision Remote in use
