VM-110

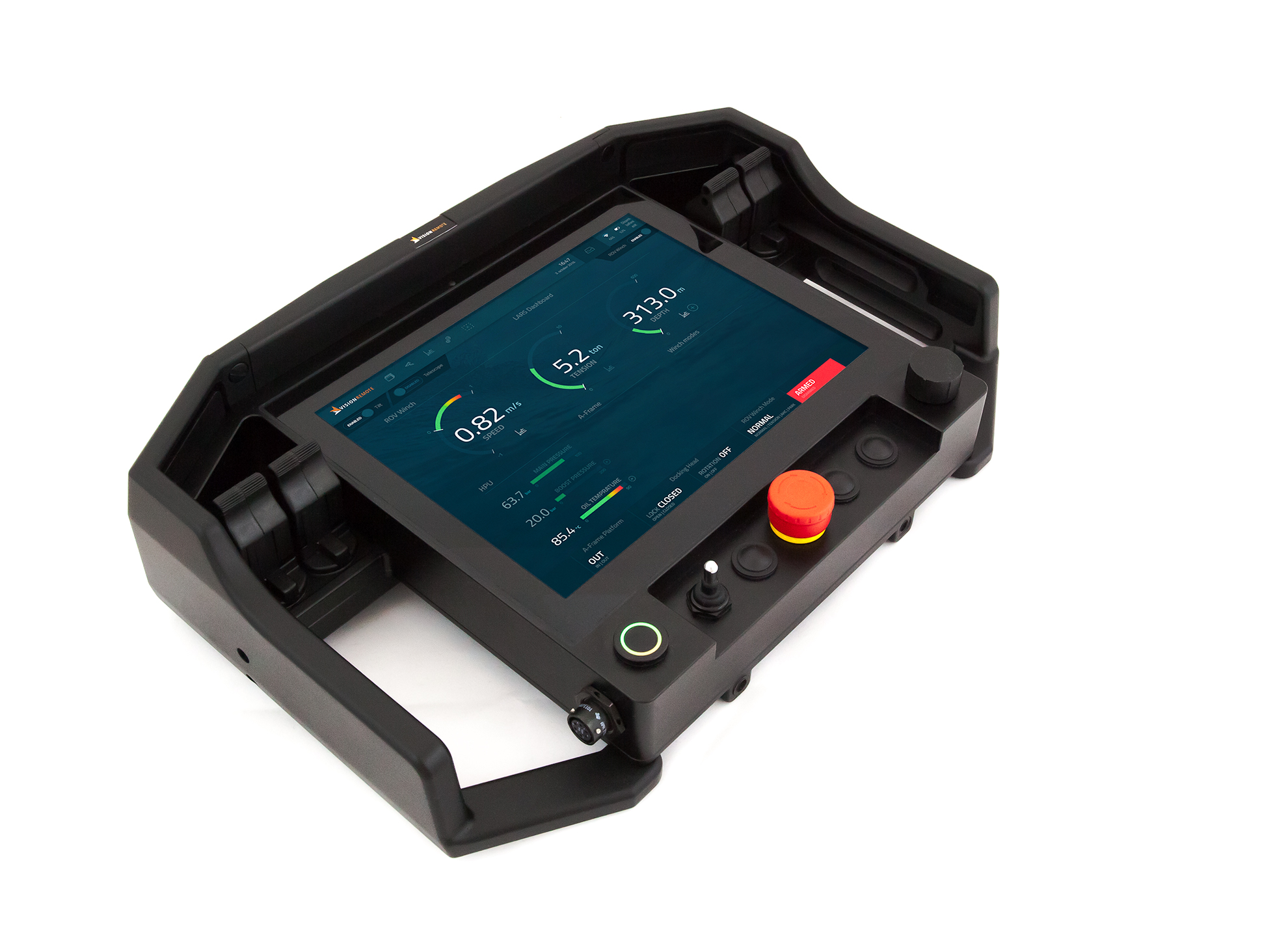

VM-110 RU

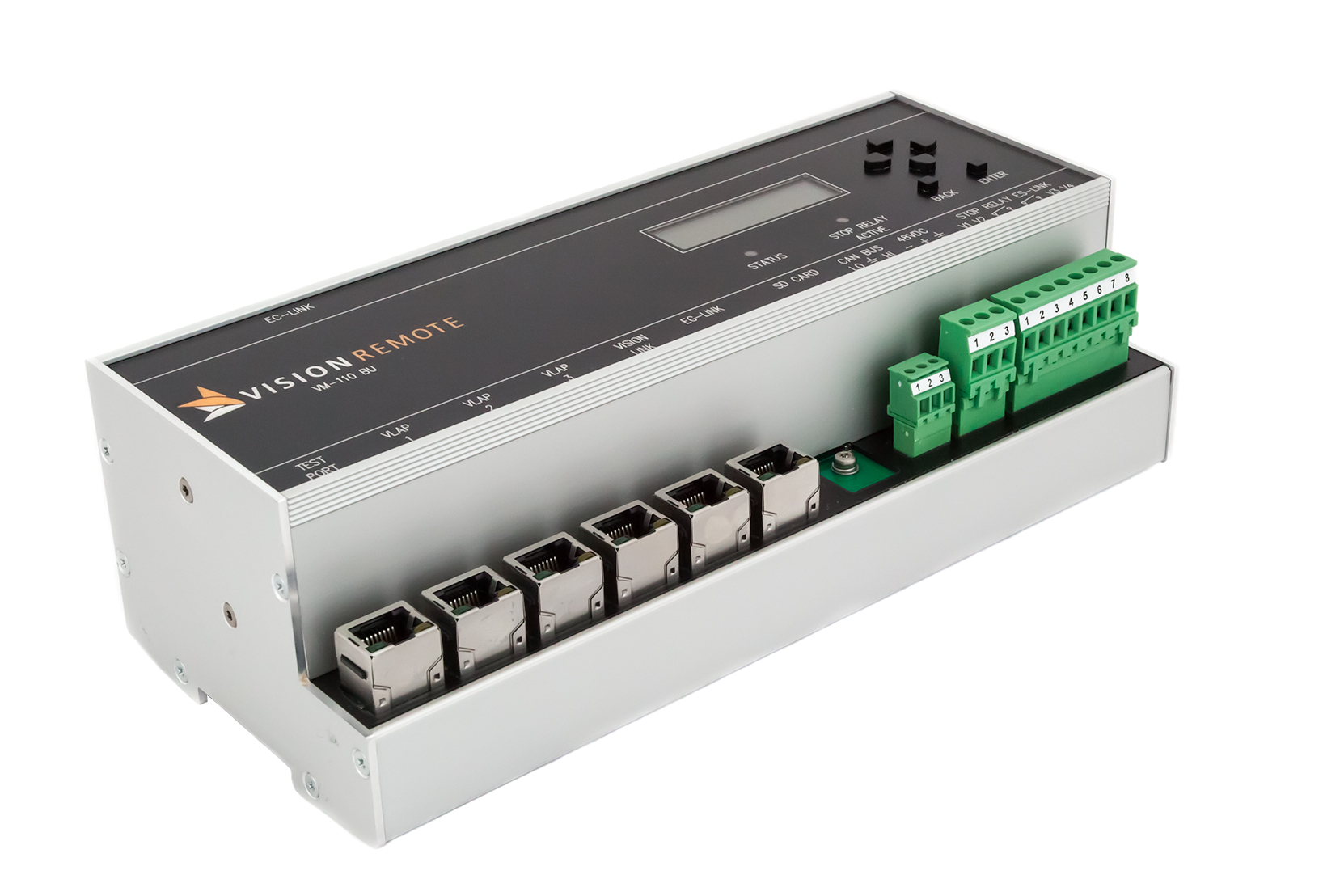

VM-110 BU

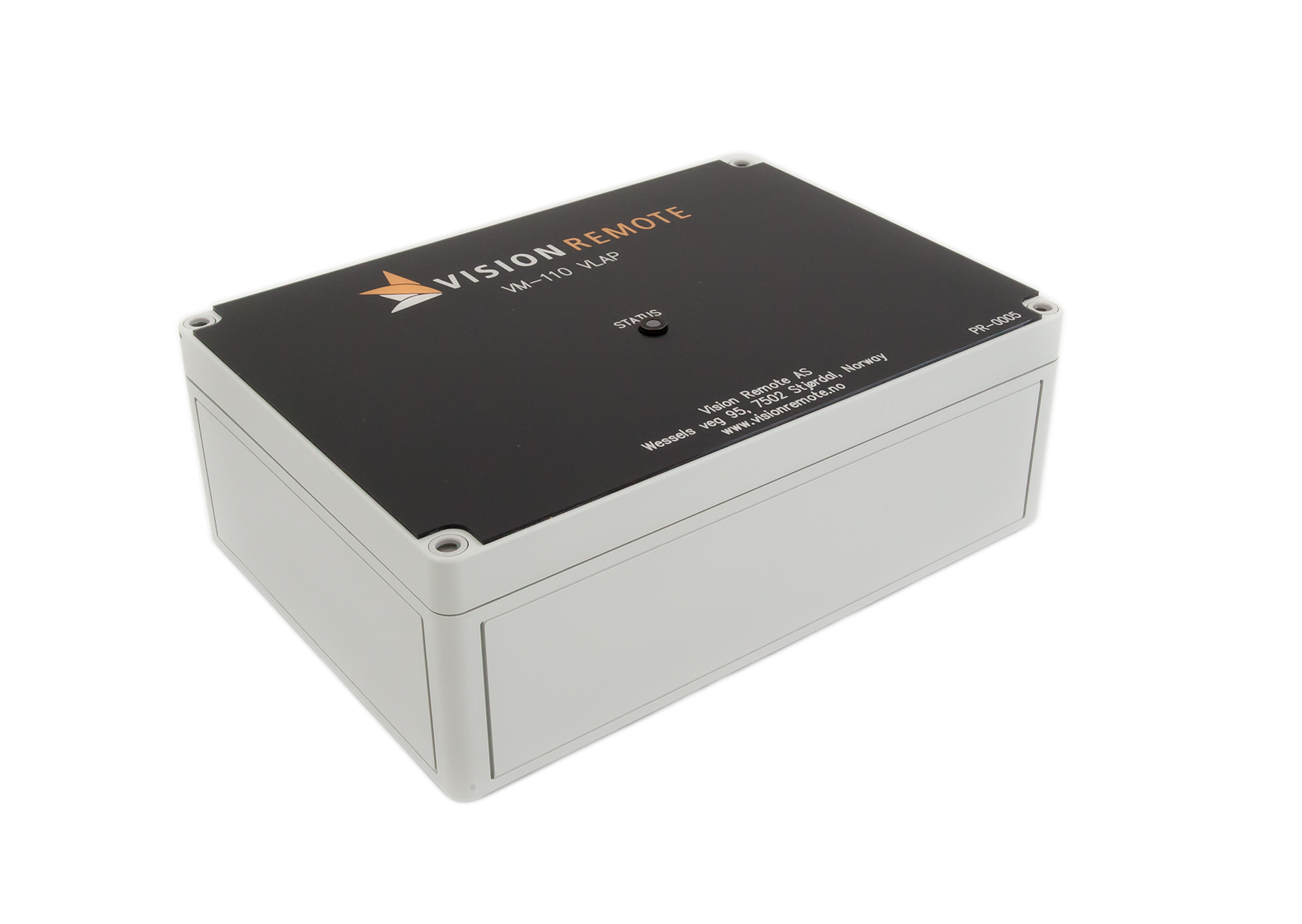

VM-110 VLAP

Bright
multi-touch screen

10,4" LCD display. Daylight viewable and usable with thin gloves. Strong glass that is break resistance on impacts.

Easily customizable
I/O and software

Create your own apps or use our standard apps. Configure physical buttons, switches, joysticks to suit your needs.

Integrated camera
and sensors

Accelerometers and gyroscop to detect tilting, free fall and shocks. Haptic feedback including both vibration motors and audio buzzer. Optional camera in front of VM-110 RU


Long battery life

Lithium Ion 7.5V 6400 mAh 48Wh with up to 6 hours battery life. Easily swappable, or charged in docking station, via cable or in charger

Redundant wireless
communication

Vision Link – Proprietary redundant radio link consisting of highly reliable 434MHz or 868MHz and WiFi supporting 802.11n (2.4GHz/5.8GHz)

Designed for high
relability and safety

Rugged design.  IP66 rated. Stop function  according to  IEC 62745 GSS and EN ISO 13849 PLd cat.3

Technical Specifications

  • Operating Temperature:
    VM-110 RU: -25 - 55 °C
    VM-110 BU: 0 - 55 °C
    VM-110 VLAP: -25 - 55 °C
  • Storage Temperature::
    All units: -30 - +70 °C
  • Ingress Protection:
    VM-110 RU: IP66
    VM-110 BU: IP20
    VM-110 VLAP: IP66
  • Dimensions:
    VM-110 RU: 406x280x80mm (16,0x11,02x3,15 inch)
    VM-110 BU: 280x125x114mm (11.24x4.93x4.49 inch)
    VM-110 VLAP: 254x180x90mm* (10x7.09x3,54 inch)
  • Weight:
    VM-110 RU: Approx. 4 kg (8,82 lbs) Depending on configuration
    VM-110 BU: Approx. 1,1 kg (2,43 lbs) Depending on configuration
    VM-110 VLAP: Approx. 2,5 kg (4.41 lbs) Depending on configuration
  • Display VM-110 RU:
    10,4" LCD 1024x768
    Impact Breakage resistant
    Daylight Viewable
    PCAP multi-touch. Usable with thin gloves
  • Stop function:
    IEC 62745 GSS and EN ISO 13849 CAT. 3 PLd when remote armed
  • Machine Control Interfaces:
    EG-Link UDP
    EC-Link Profibus DP, Profinet RT
    Others on request
  • Radio Link:
    Vision Link – Proprietary redundant radio link consisting of:
    Highly reliable 434MHz or 868MHz and
    WiFi supporting 802.11n (2.4GHz/5.8GHz)
  • Operating system:
    Linux Yocto
  • Operator Feedback:
    Haptic feedback including both vibration motors and audio buzzer.
  • Sensors:
    Ambient light sensor, accelerometers and gyroscop to detect tilting, free fall and shocks
  • Software platform:
    Create your own apps or use our standard apps.
    Built with Qt.
    VisionLink API for secure communication.
  • Battery:
    Lithium Ion 7.5V 6400 mAh 48Wh
    Up to 6 hours battery life
    Easily swappable.
    Charged in docking station, via cable or in charger
  • Carrying options:
    Ergonomic Design for carrying by hands.
    Carrying Harness w/ integrated tilt available.
  • Camera: (Option):
    1280x720@30fps

Accessories

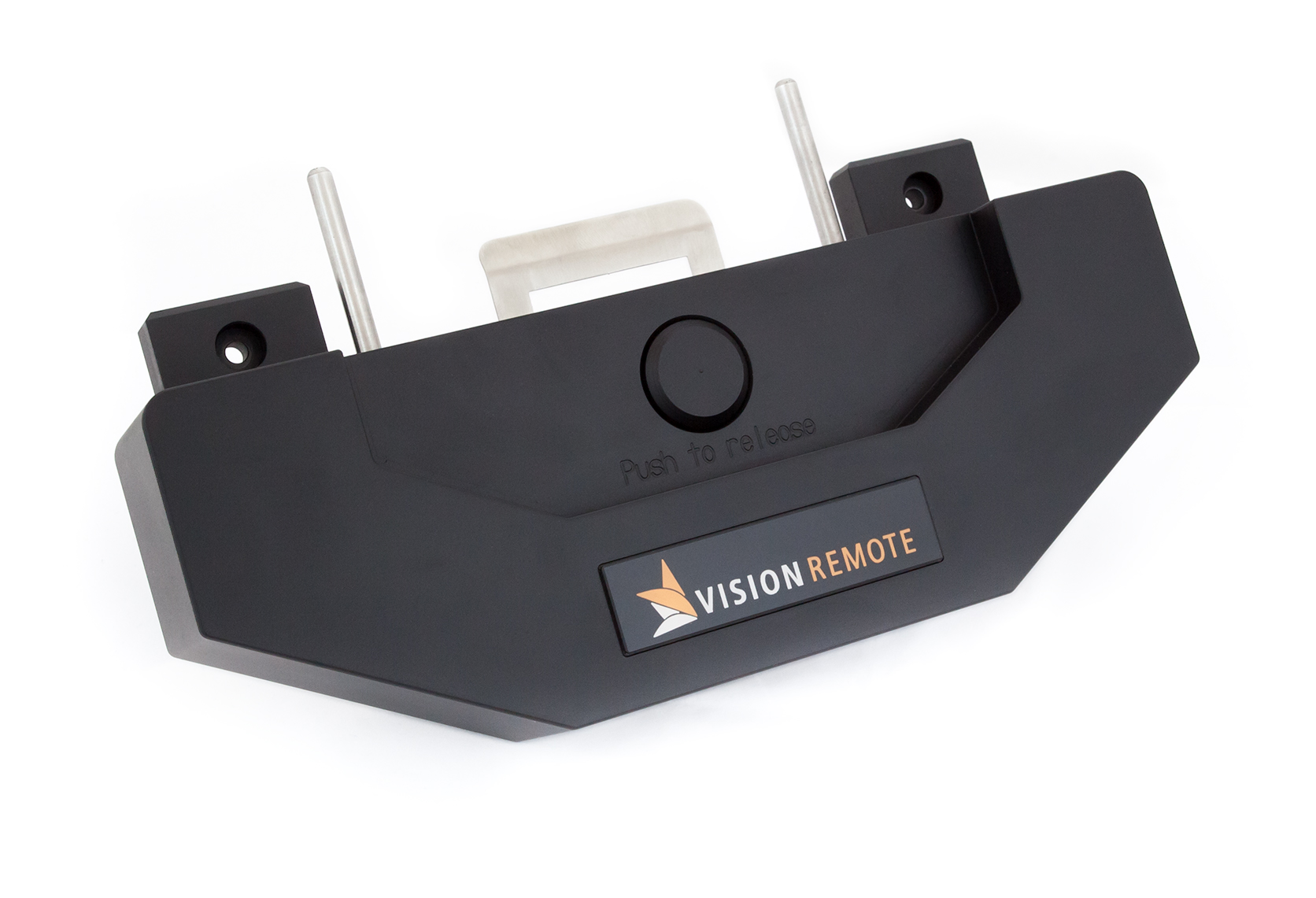

VM-110 Docking

Docking interface for VM-110 RU.
Options:With or without charging

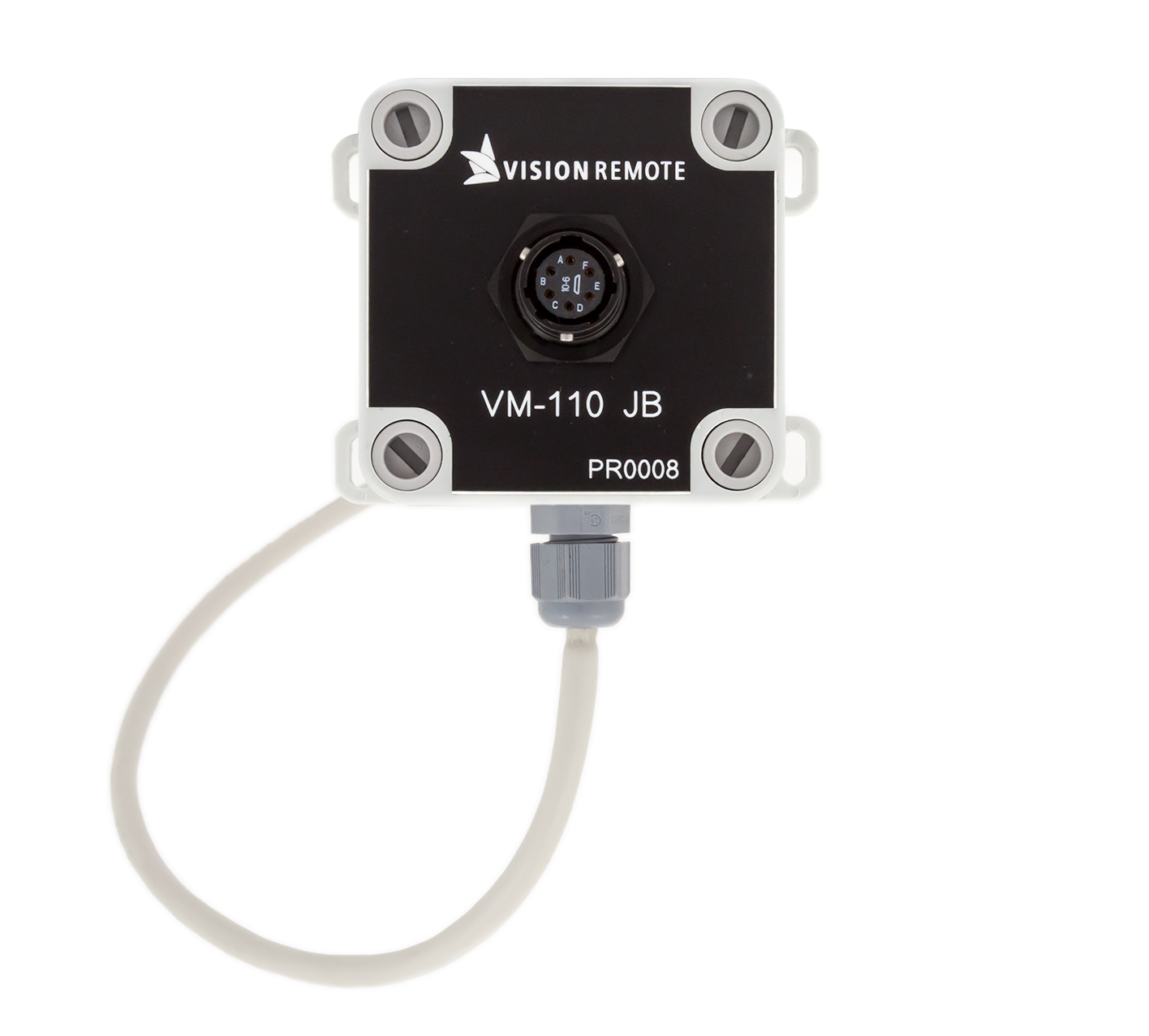

VM-110 JB

Junction box for extending VisionLink cable to operation area

Carrying Harness

Shoulder harness with tilt functionality

Vision Link cable

Vision Link communication cable that also charge the battery of the remote unit.

Usage

Operating LARS system using Vision Remote
Closeup of Vision Remote in use
Operating LARS system using Vision Remote
Closeup of Vision Remote in use
