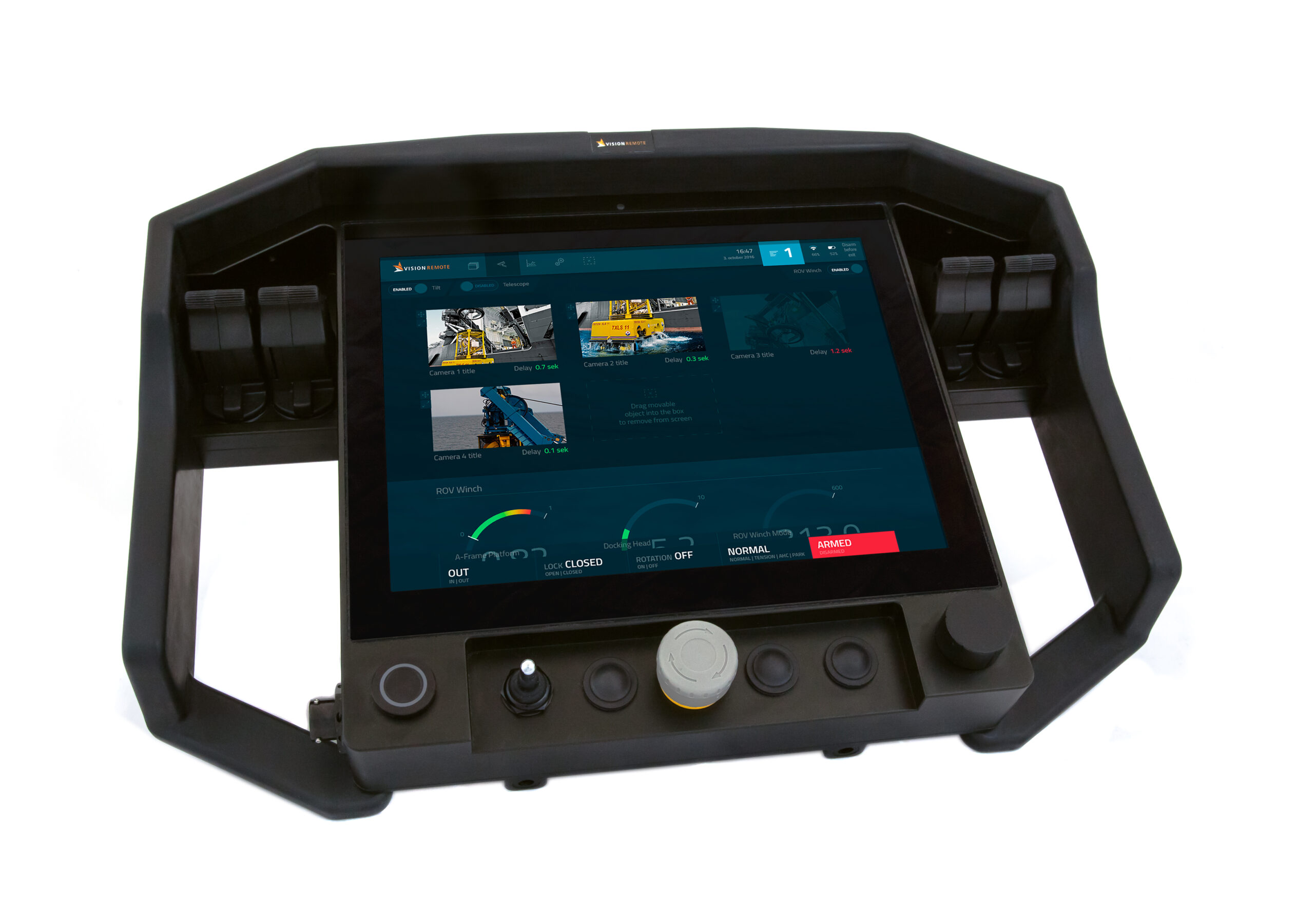

10,4" LCD display. Daylight viewable and usable with thin gloves. Strong glass that is break resistance on impacts.
I/O and software
Create your own apps or use our standard apps. Configure physical buttons, switches, joysticks to suit your needs.
Accelerometers and gyroscop to detect tilting, free fall and shocks. Haptic feedback including both vibration motors and audio buzzer. Optional camera in front of VM-110 RU
Long battery life
Lithium Ion 7.5V 6400 mAh 48Wh with up to 6 hours battery life. Easily swappable, or charged in docking station, via cable or in charger
Vision Link – Proprietary redundant radio link consisting of highly reliable 434MHz or 868MHz and WiFi supporting 802.11n (2.4GHz/5.8GHz)
Designed for high
relability and safety
Rugged design. IP66 rated. Stop function according to IEC 62745 GSS and EN ISO 13849 PLd cat.3
VM-110 RU: -25 - 55 °C
VM-110 BU: 0 - 55 °C
VM-110 VLAP: -25 - 55 °C
All units: -30 - +70 °C
VM-110 RU: IP66
VM-110 BU: IP20
VM-110 VLAP: IP66
VM-110 RU: 406x280x80mm (16,0x11,02x3,15 inch)
VM-110 BU: 280x125x114mm (11.24x4.93x4.49 inch)
VM-110 VLAP: 254x180x90mm* (10x7.09x3,54 inch)
VM-110 RU: Approx. 4 kg (8,82 lbs) Depending on configuration
VM-110 BU: Approx. 1,1 kg (2,43 lbs) Depending on configuration
VM-110 VLAP: Approx. 2,5 kg (4.41 lbs) Depending on configuration
Display VM-110 RU:
10,4" LCD 1024x768
Impact Breakage resistant
PCAP multi-touch. Usable with thin gloves
IEC 62745 GSS and EN ISO 13849 CAT. 3 PLd when remote armed
Machine Control Interfaces:
EC-Link Profibus DP, Profinet RT
Others on request
Vision Link – Proprietary redundant radio link consisting of:
Highly reliable 434MHz or 868MHz and
WiFi supporting 802.11n (2.4GHz/5.8GHz)
Haptic feedback including both vibration motors and audio buzzer.
Ambient light sensor, accelerometers and gyroscop to detect tilting, free fall and shocks
Create your own apps or use our standard apps.
Built with Qt.
VisionLink API for secure communication.
Lithium Ion 7.5V 6400 mAh 48Wh
Up to 6 hours battery life
Charged in docking station, via cable or in charger
Ergonomic Design for carrying by hands.
Carrying Harness w/ integrated tilt available.
Docking interface for VM-110 RU.
Options:With or without charging
Junction box for extending VisionLink cable to operation area
Shoulder harness with tilt functionality
Vision Link cable
Vision Link communication cable that also charge the battery of the remote unit.
